SIMPLIFY
- Eliminate Mess – no oil, shavings, tape, or dope
- Increase Tool Portability
- Use One Pipe Schedule (Schedule 10)
SAVE
- Effort – eliminate pipe wrenches
- Up to 55% less pipe prep
- Up to 2X faster to install
CONFIRM
- Replace threaded connections with mechanical joints
- Bolt pad to bolt pad visual confirmation
- No tool adjustment – groove within specification every time
WHY IGS?
SPRINKLER CONTRACTORS
SPRINKLER CONTRACTORS
• Ensures jobsite safety and reduces total installation costs
• Intuitive tool and products – groove the entire system
• Clean, no-mess installation
• Intuitive tool and products – groove the entire system
• Clean, no-mess installation
DESIGN ENGINEERS
DESIGN ENGINEERS
• Use one pipe schedule throughout the entire project and save project material costs
• Improve hydraulic performance and corrosion resistance ratio while utilizing Schedule 10 pipe.
• Improve system durability with mechanical joints
• Improve hydraulic performance and corrosion resistance ratio while utilizing Schedule 10 pipe.
• Improve system durability with mechanical joints
AUTHORITIES HAVING JURISDICTION
AUTHORITIES HAVING JURISDICTION
• Visual inspection of pad to pad contact allows for safer systems
• Increase peace of mind – no metal removed from pipe means more durable systems
• Increase peace of mind – no metal removed from pipe means more durable systems
FOREMEN
FOREMEN
• Hydrotest systems faster and only once
• Improve tool training and operation – one-touch tool actuation with no manual adjustments to groove dimensions
• Improve safety for your team – replace pipe wrenches with impact guns
• Improve tool training and operation – one-touch tool actuation with no manual adjustments to groove dimensions
• Improve safety for your team – replace pipe wrenches with impact guns
THERE IS NO COMPARISON
| THREADING | VS | IGS SOLUTION |
|---|---|---|
| x | NO Oil, Shavings, Tape and Dope | ✓ |
| x | For use with Sch. 40 – Sch. 10 pipe | ✓ |
| x | Impact guns and no elbow injuries | ✓ |
| x | Increased corrosion resistance | ✓ |
| x | Minimize the potential for leaks | ✓ |
| x | One-touch tool actuation | ✓ |
| x | Visual Inspection – Improved system durability | ✓ |
| x | Installs in minutes | ✓ |
THE SYSTEM
RG2100 Roll Grooving Tool

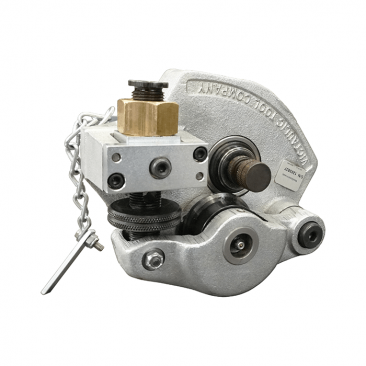

RG1 Manual Roll Grooving Tool
No. 142 Welded Outlet
VicFlex™ Series AH2-CC Hose
No. 101 Installation-Ready™ 90º Elbow
Style 108 Installation-Ready Rigid Coupling
Style 922 Outlet-T
No. 102 Installation-Ready Tee
No. 148 Sprinkler Reducer
No. 143 Close Nipple
No. 145 Female Threaded x Groove 90º Elbow
No. 147 Back-to-Back Sprinkler Tee
No. 111 Grooved End Elbow
No. 146 Cap
No. 140 Male Threaded x Groove Adapter
No. 141 Female Threaded x Groove Adapter

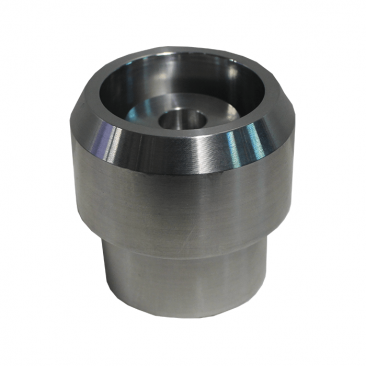

NAP-1 Weld Plunger Cone
